Hot Melt Lab Coater
|
 |
|
|
|
- Easy control of coating volume
- Low to high viscosity available
- High yield rate
- Less stripe occurrence
- Easy to change the test material
|
|

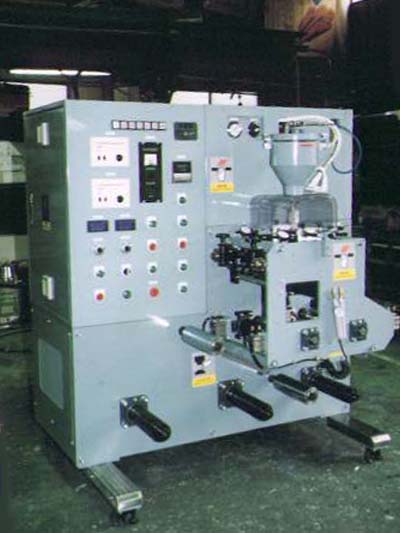

Lab Coater
(KMD-HML10)
|
Mass production machine
(KMD-H350)
|
|
Machine speed
|
2 ～ 10m/min
|
350m/min
|
|
Coating width
|
90 ～ 170mm (Stripe possible)
|
Stripe possible
|
|
Hot Melt viscosity
|
3,000 ～ 15,000cps
|
3,000 ～ 15,000cps
|
|
Processing temperature
|
80 ～ 230
|
80 ～ 230
|
|
Coating volume
|
15 ～ 1000g/
|
15 ～ 1000g/
|
|
Rewinding substrate diameter
|
 300mm
|
1100mm
|
|
Product winder diameter
|
300mm
|
1100mm
|
|
